Invacare AVIVA FX Power Wheelchair featuring sleek black ergonomic seating, contoured headrest, adjustable arm and footrests, with vivid purple highlights and an integrated side control panel for advanced mobility and personalized comfort.

AVIVA FX Power Wheelchair w/ Ultra Low Maxx Power Positioning System

Invacare
Availability:
Typically ships within 5-8 business days

Call For Pricing

(No reviews yet)
The Invacare AVIVA FX Power Wheelchair redefines mobility with front-wheel drive precision, ergonomic seating, and advanced control systems. Designed for both indoor agility and outdoor stability, it features customizable comfort options including contoured headrests, adjustable footrests, and intuitive joystick navigation. Its sleek frame balances style with performance, while suspension components and smart electronics support a smooth ride across diverse terrains. Ideal for users seeking reliability, personalization, and modern aesthetics, the AVIVA FX combines technology and comfort to empower everyday independence.
Current Stock:
Description

Invacare AVIVA FX Electric Wheelchair - Advanced Comfort Meets Front-Wheel Drive Mobility

Experience the next generation of power mobility with the Invacare AVIVA FX Power Wheelchair—an advanced front-wheel drive chair designed for superior comfort, control, and adaptability. Engineered with Invacare’s revolutionary 4Sure™ Suspension System, precision electronics, and customizable seating options, the AVIVA FX provides an exceptional ride indoors or outdoors.

Whether you're navigating tight corners at home or tackling uneven outdoor terrain, the AVIVA FX delivers unmatched stability, smoothness, and performance. With smart LiNX® controls, a low seat-to-floor height, and optional high-speed motors, this chair empowers users with greater independence and comfort.

Key Features at a Glance:

  • Front-wheel drive system offers tight maneuverability with powerful curb-climbing abilities
  • Base available in Single Actuator (IFX-20SP), Multi-Actuator (IFX-20MP), or Rehab Seating (IFX-20R) for a range of mobility needs
  • 4Sure™ Suspension System keeps all four wheels grounded for superior ride quality and shock absorption
  • Ultra Low Maxx™ Power Positioning supports up to 50° tilt and 170° recline
  • LiNX® Technology enables wireless programming, updates, and specialty control integration
  • 5.8 mph standard or 7.5 mph high-speed motor options available
  • G-Trac® gyroscopic tracking maintains a straight path with minimal input
  • Touchscreen REM400 and REM500 controls available with Bluetooth®, mouse mode, and smart device integration
  • LED lighting system improves visibility and safety at night

Three Base Configurations to Match Your Needs

The AVIVA FX is available in three purpose-built configurations:

  • Single Actuator (IFX-20SP) – Basic tilt or recline function for comfort and pressure relief

  • Multiple Actuators (IFX-20MP) – Full tilt, recline, leg elevation, and seat lift for advanced power positioning

  • Rehab Seating System (IFX-20R) – Modular design for complex clinical needs with customizable seating components, positioning accessories, and individualized setups

These options ensure the RX 20 delivers the right level of functionality for both daily use and specialized care environments.

Front-Wheel Drive for Agility and Traction

With power delivered to the front wheels, a front‑wheel drive design “pulls” the chair through tight spaces and over obstacles—rather than pushing from behind. This configuration provides:

Exceptional Indoor Maneuverability: Front wheels steer the load, allowing the AVIVA FX to turn on a dime in narrow hallways or around furniture

Superior Curb‑Climbing Ability: The driven front wheels engage curbs and thresholds first, working in concert with 4Sure™ suspension to lift and glide over obstacles with minimal runway

Enhanced Traction on Slopes: By placing drive traction at the front, the chair resists tipping and maintains forward momentum on inclines and ramps

Closer Approach to Surfaces: A low front‑wheel footprint lets users get up close to tables, counters, and vehicles for easier transfers and daily activities

Together, these benefits make a front‑wheel drive wheelchair the ideal choice for anyone seeking tight‑space agility and confident outdoor performance.

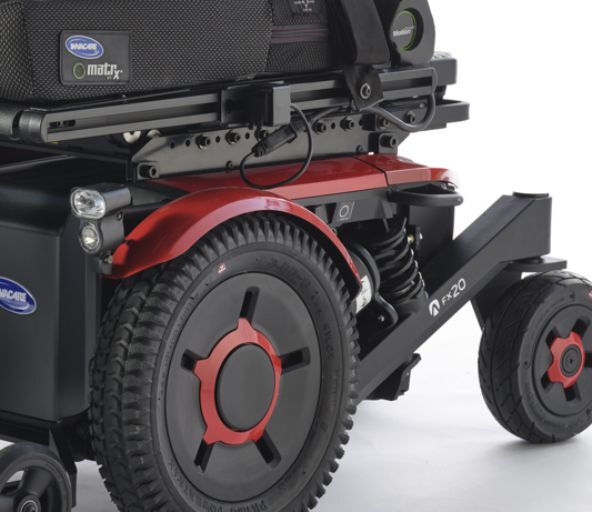

Close-up of the front wheel drive mechanism of an Invacare AVIVA FX motorized wheelchair, featuring sleek design and a red-black color scheme.

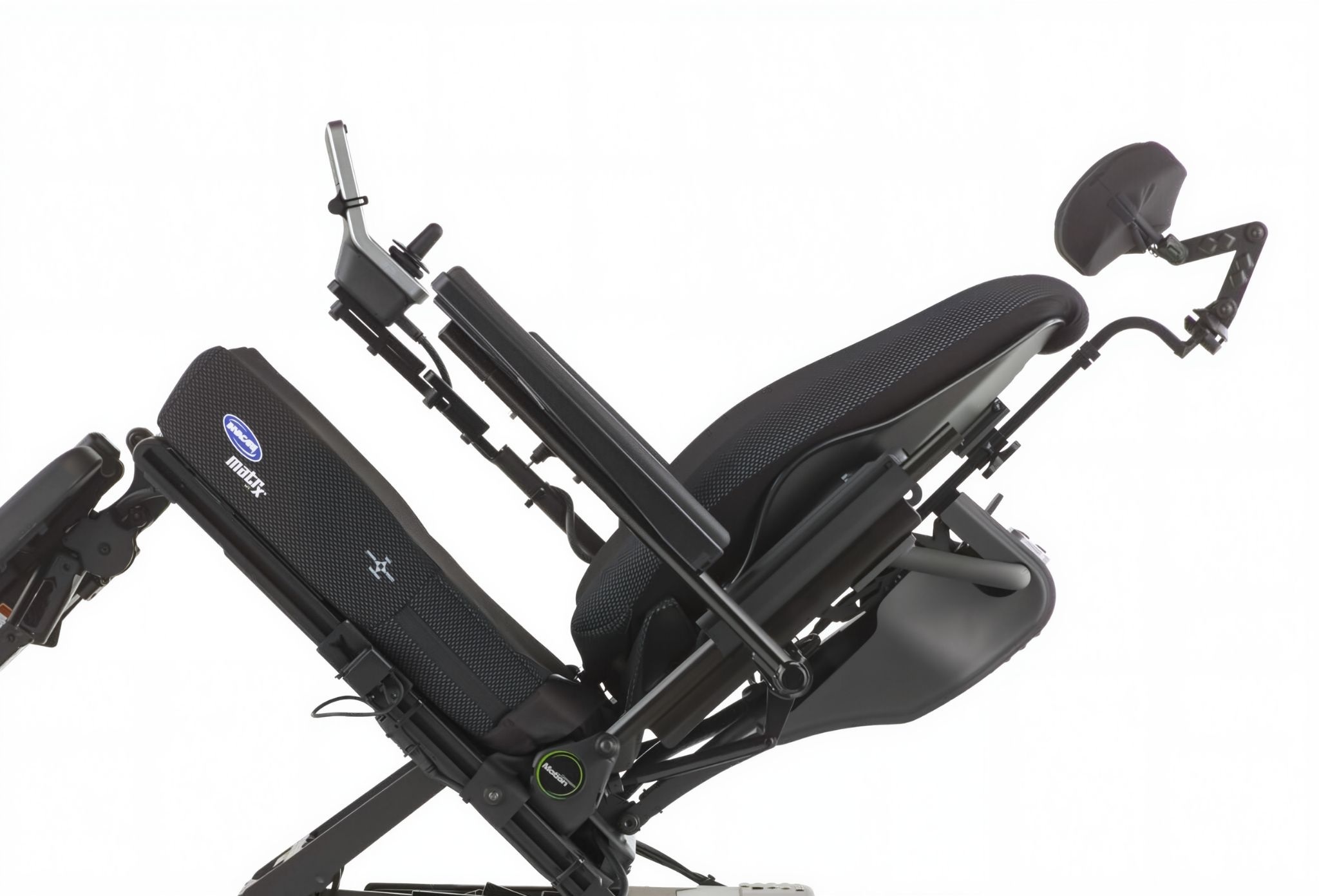

                       Ultra Low Maxx positioning system attached to an Invacare wheelchair, shown from the side with its adjustable backrest, cushioned headrest, and ergonomic support features designed for customized comfort and posture alignment.

Ultra Low Maxx™ Power Positioning System

Get unmatched comfort, support, and clinical adjustability with Invacare’s Ultra Low Maxx™ seating platform:

Modular Seating: Seat widths from 16"-22" and depths from 16"-23"

Power Tilt & Recline: Up to 50° of center-of-gravity tilt and 170° recline with Extended Shear Reduction (ESR) or Power Sliding Back (PSB) to minimize sliding and protect skin integrity

Seat Elevation: 12” of powered seat lift promotes eye-level communication, facilitates transfers, and improves access to tables and vehicles

Postural Support Accessories: Easily mount laterals, customer Matrx® cushions, leg rests, and head supports via integrated Ultra Rails

Memory Seating (Optional): Store up to four personalized positions for one-touch recall of frequently used tilt/recline/elevate settings

4Sure™ Suspension System

Navigate obstacles with confidence using the 4Sure™ Suspension System, engineered to keep all four wheels on the ground:

Articulating Front Anti-tippers: Float over thresholds & curbs with cushioned impact absorption

True Shock Absorbers & Elastomer Dampeners: Front shocks and rear springs combine to isolate vibrations and maintain a level seat plane

Four‑Bar Linkage with Floating Pivots: Delivers a soft, stable ride even at low speeds, maximizing traction and reducing “rocking” over obstacles

Automatic Chassis Reset: After climbing, the linkage returns the base to its original level without manual adjustment

   Diagram of the Invacare 4Sure suspension system for power wheelchairs, illustrating impact absorption and chassis leveling.

REM400 control panel shown with joystick and digital display; screen indicates ‘REM400 Drive’ mode and status icons for powered mobility functions.



Revolutionary LiNX™ Electronics Technology

Link to a smarter ride with LiNX® Wireless Controls, offering real‑time programming, diagnostics, and device integration:

REM400/REM500 Touchscreen Joysticks: 3.5″ color display with speedometer, odometer, and intuitive menus requiring minimal force

Bluetooth® Connectivity & Mouse Mode: Use your joystick as a mouse for smartphones, tablets, or PCs—perfect for environmental controls

Wireless Programming & Updates: Connect via iOS device, Windows tablet, or PC to adjust drive profiles, calibrate actuators, and install firmware remotely

Specialty Control Integration: Pre‑loaded ASL profiles simplify adding head arrays, sip‑n‑puff, or single‑switch scanners for alternative access

G‑Trac® Technology

Maintain a straight path with G‑Trac® Gyroscopic Tracking, reducing user effort and steering corrections:

Active Path Correction: Sensors detect deviations and make micro‑adjustments to keep the chair on course—ideal on slopes or uneven surfaces

Fatigue Reduction: Less joystick input is needed, minimizing hand and arm strain during long drives

Enhanced Safety: Consistent tracking improves control in crowded or high‑traffic environments

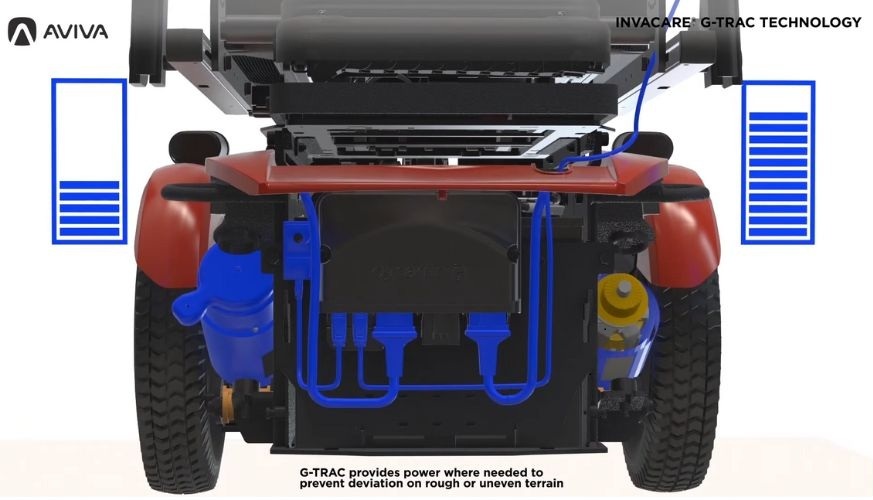

Diagram of Invacare’s G-TRAC technology, highlighting power distribution for stability on rough terrains in an electric wheelchair.

These advanced systems—Ultra Low Maxx™, 4Sure™, G‑Trac®, and LiNX®—combine to make the Invacare AVIVA FX a top choice for users and clinicians seeking cutting‑edge performance, positioning, and connectivity.

Specifications:

  • Drive Type: Front-Wheel Drive
  • Motor: DuraWatt™ 4-Pole Sealed Housing
  • Top Speed: 5.8 mph (standard) / 7.5 mph (high-speed upgrade)
  • Range: Up to 20 miles per charge
  • Battery: Group 24
  • Drive Wheels: 14"
  • Casters: 8"
  • Turning Radius: 26.8"
  • Weight Capacity: 300 lbs (250 lbs w/ elevated seat)
  • Seat Width/Depth: 16"-22"W / 16"-23"D
  • Incline Capability: 9°
  • Seat-to-Floor Height: From 16.75" to 19.75"
  • Ground Clearance: 2.5"
  • Suspension System: 4Sure Suspension
  • Electronics: LiNX™ with Bluetooth and USB
  • Lighting: Integrated front and rear LEDs

Why Choose the AVIVA FX from Aracent Healthcare?

At Aracent Healthcare, we provide only the most advanced and clinically tested mobility solutions. The Invacare AVIVA FX stands out as a high-performance, future-ready power chair designed for both comfort and complexity.

Our team can help you configure the perfect AVIVA setup to meet your everyday or medical needs.

RETURN & CANCELLATION POLICY:

  • This is a custom, built-to-order product and is NON-RETURNABLE
  • Order cancellations are not guaranteed but may be possible depending on the stage of the production lifecycle. Please contact Aracent Healthcare immediately to request cancellation, and we'll try our best to accommodate
  • For complete terms and conditions, please review our full Return & Cancellation policy

WARRANTY INFORMATION:

  • 1 Year: Base, Seat Frame, Electronics & Motors
  • 6 Months: Batteries
  • Applicable to original purchaser only. Any abuse or intentional misuse of the product will void the warranty
  • For full details, please review our Product Warranty page
