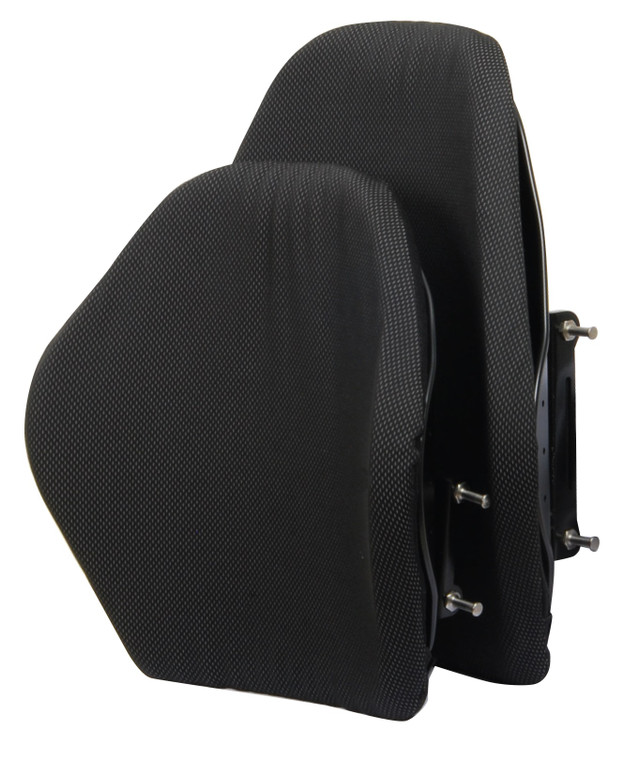

Matrx E2 Back

The Invacare Matrx E2™ Backrest is a contoured wheelchair backrest designed to provide comfortable trunk support, pelvic stability, and functional freedom of movement. With a 3″ contour depth, the E2 offers moderate lateral support without feeling overly restrictive, making it a practical option for users who need improved positioning while still maintaining upper-body mobility for propulsion, transfers, and daily activities.

The E2 combines an ergonomic back shell, advanced Ripple Foam technology, and highly adjustable mounting hardware to help create a secure, supportive fit. Its moisture-resistant Meshtex™ cover, included lumbar positioning pad, and accessory-ready shell make it a versatile backrest for both manual and power wheelchair users.

Key Features

• 3″ Contour Depth: Provides moderate trunk and pelvic support while preserving shoulder movement and functional mobility
• Ripple Foam Comfort Technology: Airflow channels help manage temperature and humidity, while the rippled foam surface improves immersion and sitting comfort
• Spinal Relief & Shear Reduction: Ripple Foam provides added immersion through the spinal relief area to help reduce shear and improve comfort along the back
• Adjustable Pin Mount Hardware: Height, width, depth, angle, and rotation adjustments allow the backrest to be positioned for improved posture, comfort, and wheelchair fit
• Adjustable Pin-Style Mounting Hardware: MiniSet or EasySet hardware provides height, width, depth, angle, and rotation adjustment to help achieve a secure, precise backrest setup
• Accessory-Ready Back Shell: Backs 14″ and taller include attachment points for a headrest and chest harness interface, with additional holes for PostureFlex abdominal support
• Meshtex™ Cover: Moisture-resistant and breathable outer cover supports comfort during daily wheelchair use
• Lumbar Positioning Pad Included: Provides added lower-back support and helps fine-tune seated posture

Additional Features & Details

• Anatomically contoured shell supports the trunk and pelvis.
• Notched sacral cutout helps improve lower pelvic positioning and comfort.
• Foam and cover overlap the back shell for added comfort and protection.
• Available with MiniSet or EasySet pin-style mounting hardware, depending on backrest height.
• Hardware fits 3/4″, 7/8″, and 1″ diameter back canes.
• Hardware can be positioned to help avoid frame obstacles such as arm supports or rigidizer bars.
• Adjustments can be made with the user seated in the backrest.
• Headrest interface is included with backs 14″ and longer.
• Designed for manual and power wheelchair applications.
• Available in multiple width and height combinations.
• Standard Meshtex™ fabric upholstery.
• Supports users up to 300 lbs.

Ripple Foam Comfort & Support

The Matrx E2 uses Ripple Foam technology to improve comfort, immersion, and airflow. The rippled top surface helps the foam conform to the backrest contour, while integrated airflow channels assist with temperature and humidity control during extended sitting.

The foam also includes a spinal relief area that provides additional immersion and shear reduction where users may need it most. A supportive high-resilience foam backing helps maintain structure, protection, and long-term durability.

Back Shell & Accessory Compatibility

The E2 back shell is designed for both comfort and clinical adaptability. Its notched sacral cutout helps improve lower pelvic fit, while the contoured shell provides moderate trunk support without unnecessary bulk.

For users who require additional positioning components, backs 14″ and taller include holes for headrest and chest harness interface attachment. Three additional holes are provided for attaching a PostureFlex abdominal support at the desired position.

Mounting Hardware Options

The Matrx E2 Back uses pin-style mounting hardware designed to make setup, adjustment, and wheelchair frame compatibility easier. The hardware allows height, depth, angle, width, and rotation adjustment, helping clinicians and providers position the backrest more precisely for posture, comfort, and wheelchair fit.

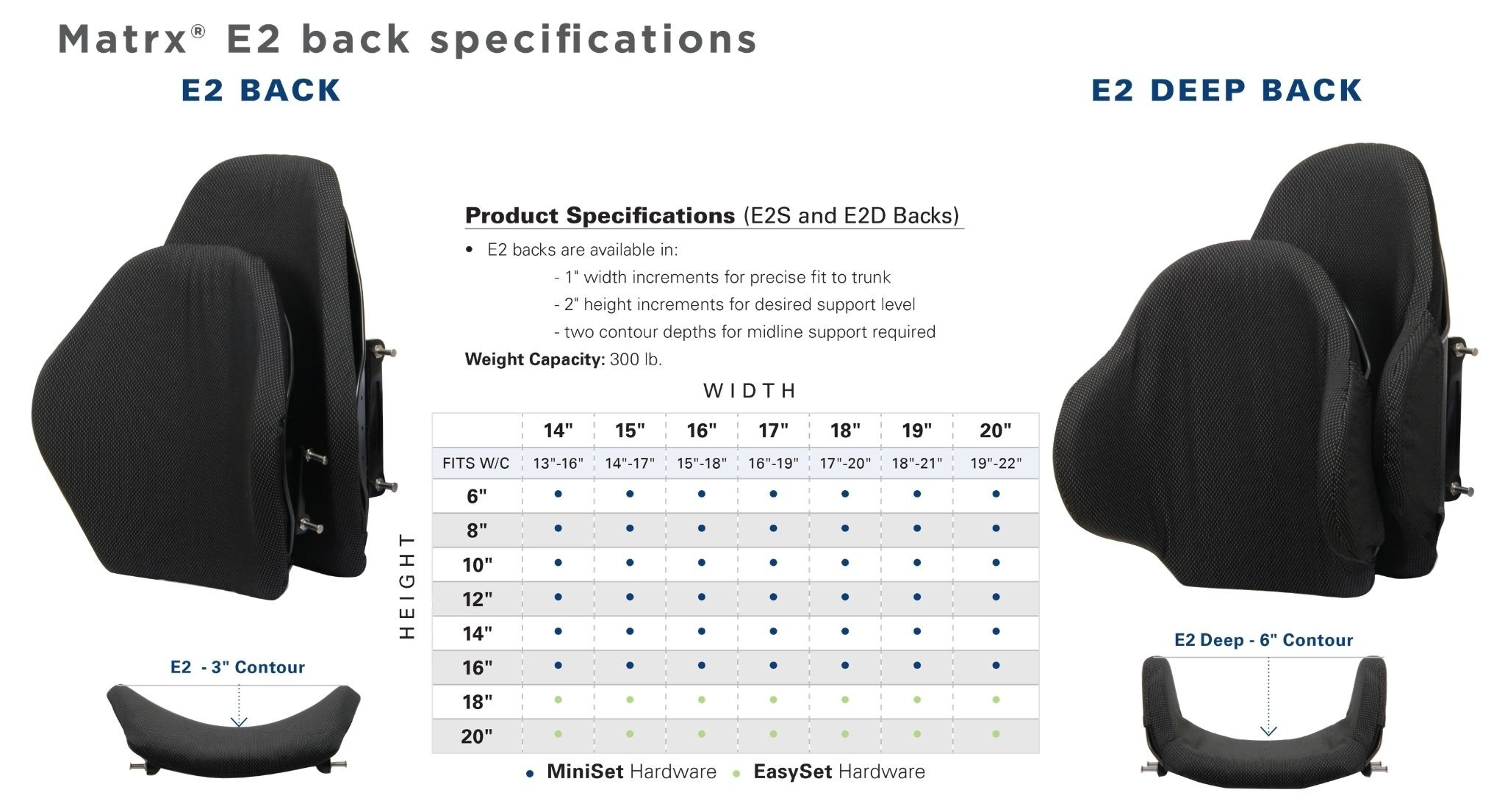

• MiniSet Hardware is included on back heights up to 16″. It fits wheelchairs that are 1″ narrower or 1″ wider than the selected backrest width.
• EasySet hardware is included on 18″ and 20″ back heights. It fits wheelchairs that are 1″ narrower or 2″ wider than the selected backrest width.
  • EasySet may also be ordered on backs 12″ and taller when the backrest needs to interface with a chair that is 2″ wider.

Both hardware styles fit 3/4″, 7/8″, and 1″ diameter back canes and can be positioned to avoid frame obstacles such as arm supports or rigidizer bars. Adjustments may be made with the user seated in the backrest, helping simplify setup and fine-tuning.

Cover Design

The Matrx E2 Backrest includes a breathable, moisture-resistant Meshtex™ outer cover designed for daily wheelchair use. The foam and cover overlap the shell to help improve comfort at the edges while protecting the backrest during routine use.

A lumbar positioning pad is included to help provide additional lower-back support and allow minor comfort adjustments during setup.

Who This Backrest Is Best For

The Invacare Matrx E2 Back is appropriate for users who need:

• Moderate trunk and pelvic support
• A 3″ contoured backrest with functional freedom of movement
• Improved comfort, airflow, and immersion from Ripple Foam technology
• Adjustable hardware for improved posture and wheelchair fit
• Compatibility with headrests, chest harnesses, or abdominal supports
• A backrest suitable for manual or power wheelchair use

Need Help Choosing the Right Backrest?

Need help determining whether the Matrx E2 Backrest is the right fit? Our team can assist with product guidance to help match the backrest size, contour depth, hardware style, and positioning needs to the user’s wheelchair setup.
