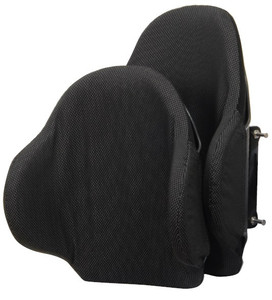

Matrx E2 Deep Back

The Invacare Matrx E2 Deep Back is a contoured wheelchair backrest designed to provide enhanced trunk support, pelvic stability, and seated comfort for users who need more positioning assistance than a standard contour back. Built with a deeper shell profile, the E2 Deep offers increased lateral support while still preserving functional upper-body movement for daily mobility, transfers, and wheelchair use.

Like the standard contour Matrx E2, the Deep version features advanced Ripple Foam technology, adjustable pin-style mounting hardware, a breathable Meshtex™ cover, and an accessory-ready back shell. Its deeper contour helps provide greater postural control for users who need added trunk stability, improved alignment, and more secure seated positioning in a manual or power wheelchair.

Key Features

• Deep Contour Support: Deeper back shell provides increased lateral trunk support for users who need more positioning assistance than a standard contour backrest
• Enhanced Trunk & Pelvic Stability: Contoured shape helps stabilize the pelvis and trunk while supporting improved seated alignment
• Ripple Foam Comfort Technology: Airflow channels help manage temperature and humidity, while the rippled foam surface improves immersion and sitting comfort
• Spinal Relief & Shear Reduction: Ripple Foam provides added immersion through the spinal relief area to help reduce shear and improve comfort along the back
• Adjustable Pin-Style Mounting Hardware: MiniSet or EasySet hardware provides height, width, depth, angle, and rotation adjustment for a secure, precise backrest setup
• Accessory-Ready Back Shell: Backs 14″ and taller include attachment points for a headrest and chest harness interface, with additional holes for PostureFlex abdominal support
• Meshtex™ Cover: Moisture-resistant and breathable outer cover supports comfort during daily wheelchair use
• Lumbar Positioning Pad Included: Provides added lower-back support and helps fine-tune seated posture

Additional Features & Details

• Deep contoured shell supports users requiring greater lateral stability
• Notched sacral cutout helps improve lower pelvic positioning and comfort
• Foam and cover overlap the back shell for added comfort and protection
• Available with MiniSet or EasySet pin-style mounting hardware, depending on backrest height
• Hardware fits 3/4″, 7/8″, and 1″ diameter back canes
• Hardware can be positioned to help avoid frame obstacles such as arm supports or rigidizer bars
• Adjustments can be made with the user seated in the backrest
• Headrest interface is included with backs 14″ and longer
• Designed for manual and power wheelchair applications
• Available in multiple width and height combinations
• Standard Meshtex™ fabric upholstery
• Supports users up to 300 lbs.

Deep Contour Support & Positioning

The Matrx E2 Deep Back is designed for users who need additional lateral support to help maintain seated alignment. Its deeper contour helps provide more contact around the trunk, improving stability and helping reduce unwanted side-to-side movement during daily wheelchair use.

This added support can be especially helpful for users who require more postural control, fatigue more easily when sitting upright, or need a backrest that provides a more secure seated feel than a standard 3″ contour back.

Ripple Foam Comfort & Support

The E2 Deep uses Ripple Foam technology to help improve comfort, airflow, and immersion. The rippled top surface allows the foam to better conform to the back contour, while integrated airflow channels assist with temperature and humidity control during extended sitting.

The foam also includes a spinal relief area to provide added immersion and shear reduction along the spine. A supportive high-resilience foam backing helps maintain durability, structure, and long-term protection.

Back Shell & Accessory Compatibility

The E2 Deep back shell is designed to support both positioning and clinical adaptability. Its notched sacral cutout helps improve lower pelvic fit, while the deep contoured shell provides increased lateral trunk support for users who require more stability.

For users who need additional positioning components, backs 14″ and taller include attachment points for headrest and chest harness interfaces. Three additional holes are provided for attaching a PostureFlex abdominal support at the desired position.

Mounting Hardware Options

The Matrx E2 Deep uses pin-style mounting hardware designed for adjustability and wheelchair frame compatibility. The hardware allows height, depth, angle, width, and rotation adjustment, helping clinicians and providers position the backrest more precisely for posture, comfort, and wheelchair fit.

• MiniSet Hardware is included on back heights up to 16″. It fits wheelchairs that are 1″ narrower or 1″ wider than the selected backrest width.
• EasySet hardware is included on 18″ and 20″ back heights. It fits wheelchairs that are 1″ narrower or 2″ wider than the selected backrest width.
  • EasySet may also be ordered on backs 12″ and taller when the backrest needs to interface with a chair that is 2″ wider.

Both hardware styles fit 3/4″, 7/8″, and 1″ diameter back canes and can be positioned to avoid frame obstacles such as arm supports or rigidizer bars. Adjustments may be made with the user seated in the backrest, helping simplify setup and fine-tuning.

Cover Design

The Matrx E2 Deep Back includes a breathable, moisture-resistant Meshtex™ outer cover designed for daily wheelchair use. The foam and cover overlap the shell to help improve comfort around the edges while protecting the backrest during routine use.

A lumbar positioning pad is included to help provide additional lower-back support and allow minor comfort adjustments during setup.

Who This Backrest Is Best For

The Invacare Matrx E2 Deep Backrest is appropriate for users who need:

• More lateral trunk support than a standard contour backrest
• Improved pelvic and trunk stability
• A deeper contoured backrest for added postural control
• Ripple Foam comfort, airflow, and immersion
• Adjustable hardware for improved wheelchair fit
• Compatibility with headrests, chest harnesses, or abdominal supports
• A backrest suitable for manual or power wheelchair use

Need Help Choosing the Right Backrest?

Need help determining whether the Matrx E2 Deep Back is the right fit? Our team can assist with product guidance to help match the backrest size, contour depth, hardware style, and positioning needs to the user’s wheelchair setup.
